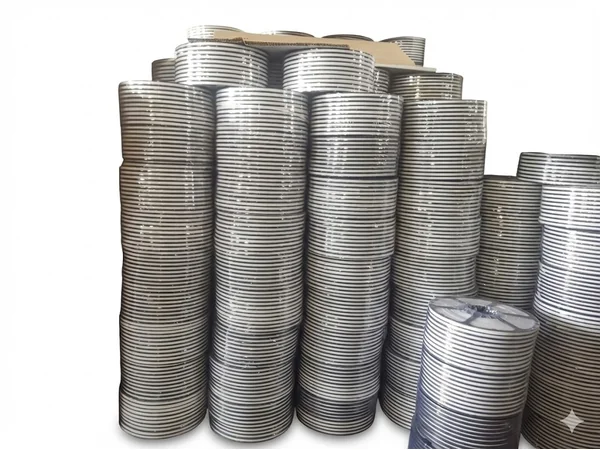

PTFE Tape Filler for Spiral wound Gasket is made from 100% PTFE with a special process molding. PTFE tape for SWG includes Virgin PTFE filler, Expanded PTFE filler, and RPTFE filler. They can conform to any surface, including rough, pitted, scratched, and damaged surfaces. It has excellent characteristics, such as sealing, insulating, acid-resistance, and corrosion-resistance.
Description
PTFE Tape Filler For Spiral Wound Gasket Specifications:
Temperature: -240 up to 260 deg.C
Pressure: 100 bar
PH valve: 0~14
Density: Expanded PTFE 0.8 (±0.05) g/cm3, PTFE 2.25 (±0.05) g/cm3
Thickness: 0.5-1.0 mm
Width: 5.7-6.0 mm/3.9-4.3 mm is for 4.5/3.2 mm of SWG
Application
- It is Strong, tight seal for any threaded joint, used on oxygen & portable water systems.
- it is widely utilized in construction machinery, chemical industry, and other areas, especially in pipe linking systems such as buildings.
- It is widely used under all conditions for the long term.
