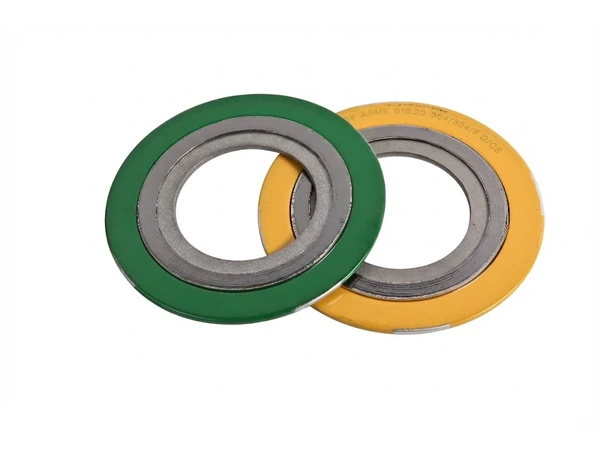

Spiral Wound Gasket

Spiral Wound Gasket consists of a thin metal hoop and non-metallic filler material that is simultaneously wound. The metal hoop is pre-formed in V or W-shaped profile, which allows the gasket to act as a spring between the flanges.

Spiral Wound Gaskets are extremely popular due to the wide variety of available styles and sizes, it is the precision-engineered solution for flange joints, manholes, and other high-temperature, high-pressure applications. We can produce according to ASME, BS, JIS, and EN(DIN) standards or client requests.

Add to quote
SKU: GS001 Category: Tags: ,

Description

Item Style Flange For example
Basic type SWG GS001 Tongue and Groove 304/PTFE
SWG with inner ring GS001IR Male and Female 304 304/FG
SWG with the outer ring GS001CR Raised faceFlat face 304/ASB CS
SWG with inner & outer rings GS001IC 304 304/FG CS
SWG for heat exchanger GS001H Heat exchanger 304/FG with 1 bar of DJ
Special shape SWG GS001S Special Oval

Feature

  1. Spiral Wound Gaskets are made in a wide variety of sizes and shapes.
  2. The gasket temperatures from cryogenic up to 1000 °C
  3. High and low-temperature resistance
  4. Quick to install and remove

Application

The spiral wound gasket can be used as the static sealing element of a pipe, valve, pump, thermal exchange, condensing tower, plain hole, manhole of flange, etc.

Petrochemical, chemical, mechanical manufacturer, power station, metallurgy, shipbuilding, medical and pharmaceutical unclear power station, navigation, etc.
