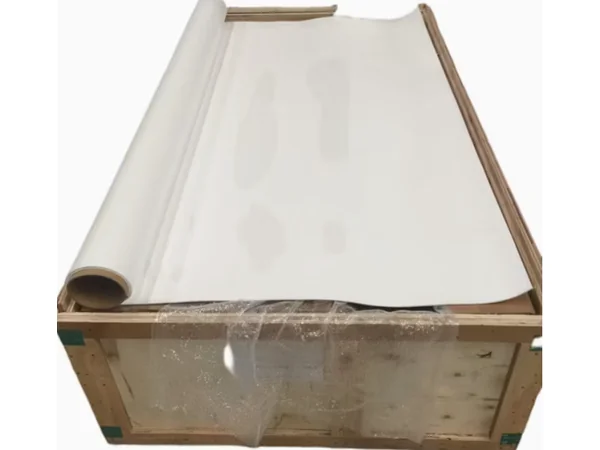

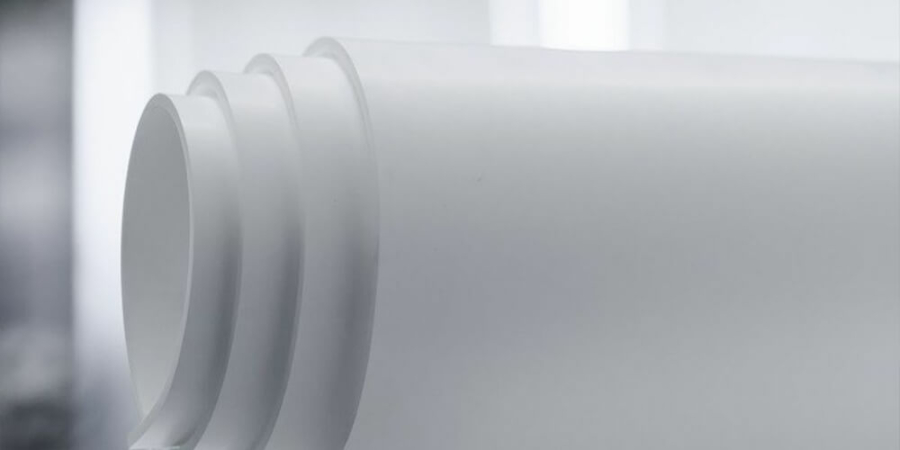

Expanded PTFE Sheet

Expanded PTFE Sheets are made from 100% virgin PTFE resins. Expanded PTFE sheet using a special process that produces a uniform and highly fibrillated microstructure with a great lot of fibers running in multi-direction.

It is food approved product and has excellent resistance to a wide range of chemicals, making it a popular sealing material in the food, drink, and pharmaceutical industries. It has excellent sealability, cuts easily, and separates cleanly from flanges after use.

Add to quote
SKU: PT002 Category: Tags: , ,

Description

Properties Technical Parameter
Material 100% Virgin PTFE
Color  White
 Tensile strength（MPa）     17Mpa
Density(g/cm) 0.75g/cm3
Max Working Temperature 200℃
Sealing Leakage 0.75×10ˉ3
Compression Rate 48%
Compression deformation rate 38%
Resilient Rate 12%
Volatility Refer to FDA21CFR177.1210
PH value 0-14
Size Example: 1500x1500x3mm

Feature

expanded PTFE sheet is a versatile material used in many industries due to its exceptional durability and resistance to harsh environments. it is widely used for expanded PTFE gaskets and is a good choice for fragile, worn, and damaged flanges. expanded PTFE sheet can also sustain compressive stresses of up to 40,000 pounds per square inch without compromising its sealing capacity.

Feature:

  1. Excellent resistance to creep and cold flow
  2. The clean and soft sealing material, harmless in contact with food
  3. Easy to install, easy to cut, punch and plot
  4. Excellent recovery properties; suitable for changing loads
  5. Suitable for high-temperature applications
  6. Allows a precise mathematical approach to the sealing application

Stock Dimension

Item Size Thickness(mm) Size Thkness(inch)
1 1500mmx1500,3000mm 0.5 60” x 60” 1/64”
2 1500mmx1500,3000mm 1 60” x 60” 1/32”
3 1500mmx1500,3000mm 1.5 60” x 60” 1/16”
4 1500mmx1500,3000mm 2 60” x 60” 5/64”
5 1500mmx1500,3000mm 3 60” x 60” 1/8”
6 1500mmx1500,3000mm 4 60” x 60” 5/32”
7 1500mmx1500,3000mm 5 60” x 60” 3/16”
8 1500mmx1500,3000mm 6 60” x 60” 1/4”
9 1500mmx1500,3000mm 7 60” x 60”
10 1500mmx1500,3000mm 8 60” x 60”
11 1500mmx1500,3000mm 9 60” x 60”
12 1500mmx1500,3000mm 10 60” x 60”

special sizes can be customized as request

Application

Expanded PTFE sheet is used as a sealing material for various flanges, It can be used in distilleries, petrochemicals, food and beverage, pharmaceuticals, general chemicals, power generation, iron and steel manufacturing, pulp and paper, Marine, etc common industries, as well as the need of special sealing environment.  and seal nearly all aggressive chemicals 0-14 PH
