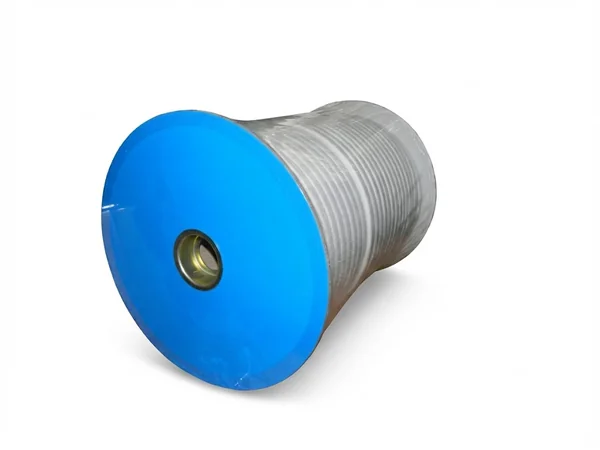

Expanded PTFE Joint Sealant

Expanded PTFE joint sealant  is a new soft ePTFE tape gasket product made of 100% PTFE. which is developed by using a highly specific treatment on the PTFE Fluorocarbon material.

The Expanded PTFE Joint Sealant is a form-in-place gasket, with its exceptional performance characteristics, pure material composition, and versatility, serves as an ideal sealing solution across various industries. Its adaptability and ease of use contribute to its pivotal role in diverse applications, making it a reliable choice for sealing requirements in different industrial settings

The Expanded PTFE Joint Sealant is supplied with a self-adhesive backing for easy fitting.

Add to quote
SKU: PT001 Category: Tags: , , ,

Description

The expanded PTFE joint sealant is a continuous tape made of 100% pure polytetrafluoroethylene (PTFE) material, the design makes the expanded PTFE joint sealant tape easily processed and utilized. and this feature allows the expanded PTFE tape gasket to be shaped into various forms on-site without needing prior preparation.

Temperature -248 °C~260°C
Pressure range 100 bar
Material 100% pure PTFE resin
Technology Multidirectional Strength
Density 0.7 g/cm3~0.8 g/cm3
PH 0~14



Feature

  1. The expanded PTFE joint sealant is an economical, quick, and simple installation.
  2. There is no scrap or waste, the expanded PTFE joint sealant costs less than other gasket material
  3. The expanded PTFE joint sealant’s-compression resilience ensures long-lasting sealing capabilities, effectively preventing media leakage. and the ePTFE tape gasket maintains stable performance in extreme temperature conditions, catering to a wide range of industrial environments.
  4. The expanded PTFE Joint Sealant’s self-lubricating property reduces friction, improving sealing effectiveness, especially in dynamic sealing applications.
  5. the expanded PTFE joint sealant displays outstanding corrosion resistance, making it suitable for applications in highly corrosive environments, such as the chemical and petrochemical industries.
  6. Approved by FDA21 CFR177/ROHS/SDS certificate

Stock Dimension

Width mm Thick. mm M/roll Width mm Thick. mm M/roll
1.5 3.0 30 15 5.0 5
3 2.0 30 16 3.0 5
5 2.0 20 16 5.0 5
6 3.0 15 17 5.0 5
7 2.5 15 18 5.0 5
8 3.0 15 20 5.0 5
9 4.0 10 25 5.0 5
10 3.0 10 30 5.0 5
10 4.0 10 40 4.0 5
12 4.0 8 50 3.0 5
14 5.0 5 100 1.0 5

More sizes can be customized as request

Application

The expanded PTFE Joint Sealant  applications are as follows:

  1. Chemical and Petrochemical Industries: The outstanding corrosion resistance of the expanded PTFE joint sealant tape makes it a preferred choice in chemical and petrochemical applications, preventing leakage of corrosive substances.
  2. Food and Beverage Industry: Recognized for its purity and hygiene, the expanded PTFE joint sealant is utilized in the food and beverage industry to ensure the sealing of pipes and equipment, mitigating the risk of cross-contamination.
  3. Electronics and Power Sector: Widely used in electronic and power equipment, the expanded PTFE Joint Sealant ensures efficient operations and prevents the leakage of liquids or gases in these critical applications.
  4. Medical Field: Leveraging its biocompatibility, the expanded PTFE Joint Sealant finds application in medical devices and pharmaceutical processes, maintaining the required standards for equipment sealing and hygiene.
