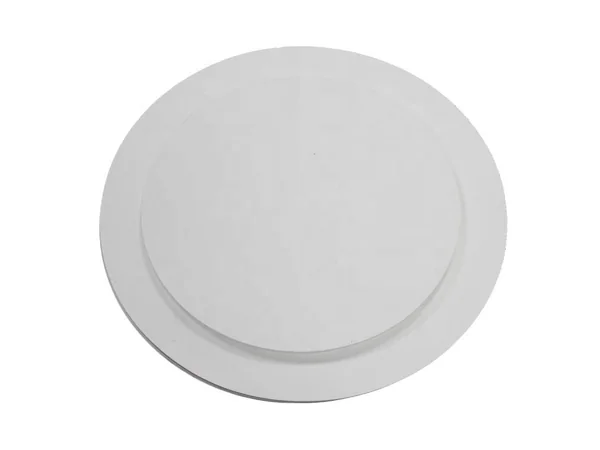

Expanded PTFE Gasket

Expanded PTFE Gasket is cut from Expanded PTFE gasket sheet, our expanded PTFE gasket sheet made with virgin PTFE resins.

It is suitable for use in steel flanges and flanges where a highly compressible gasket is required. It is also ideal for sealing flanges with irregular surfaces. It will not exhibit the cold flow problems associated with virgin PTFE or the hardness problems of some other filled PTFE products. Expanded PTFE gasket has excellent sealability, cuts easily, and separates cleanly from flanges after use, and the flexibility of the expanded PTFE gasket’s unique material allows it to fit any flange shape, therefore it is unnecessary to stock a variety of gasket shapes and sizes.

Add to quote

Description

PROPERTY	STANDARD	VALUE
Color	–	White
Density	ASTM D792	0.75-0.95g/cm3
Operating temperatures	–	-286 – 320°C
Compressibility	ASTM F36	45 %
Recovery	ASTM F36	12 -13%
Creep Relaxation	ASTM F38	35 – 36 %
Sealability (Nitrogen)	ASTM F 37B	0.15 ml / hr
Sealability (Fuel A)	ASTM F 37B	0.02 ml / hr
Service Pressure	–	Full Vaccum to 19 MPa
Tensile Strength Both directions	ASTM D638	19.6 MPa

Feature

A wide range of applications for all types of flanges
expanded PTFE gasket easy cut and installation
Higher temperature resistance
Multi-directionally expanded PTFE has exceptional mechanical strength
Cost savings
Long using life – reduce changing gasket period – cut cost
Easy and simple to install gaskets, a used gasket changed easily
Sizes from 1/2” – 24” available, Custom sizes&shapes on request
Offers some of the largest sheet sizes in the industry
High-quality raw material selection
FDA 21 CFR 177.1550

Application

Expanded PTFE gaskets can be used as a sealing part of most flange joints in all industries, especially suitable for special flange sealing needs such as complicated geometry, uneven flange surface, glass enamel, compressors, manhole gaskets, etc. and ePTFE gaskets provide exceptional performance in any industry, such as Chemical, petrochemical, oil refining, offshore oil and gas, aerospace, automotive, mining, aircraft manufacturing, food, pharmaceutical etc typical industries.
